Pittsburgh Model 16 Gauge

Pittsburgh Model 16 Gauge

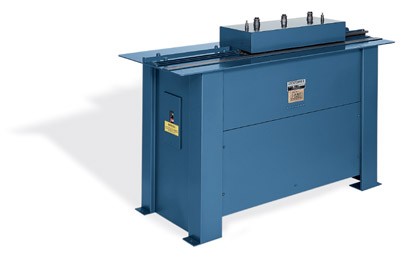

These powerful performers offer the HVAC industry day-in/day-out service. The 16 gauge Pittsburgh Lock machines have 7 forming stations with 2 forming positions. One position forms the Pittsburgh lock, while an auxiliary or outboard position has the ability of forming 1 of 8 profiles depending on the contractor’s needs.

Optional Profiles

 ROLLSCAPACITYAPPROX. MATERIAL USEDSIZE
Pittsburgh roll 1Pittsburgh Lock rolls, 5/16″ Pocket22 to 28 gauge25mm5/16″ Pocket
Double seam Rolls

Double seam Rolls (type S)
Double seam Rolls (type L)

22 to 28 gauge
16 to 22 gauge

28mm
33mm

3/8″ Seam
1/16″ Seam

Drive Cleat RollsDrive Cleat Rolls20 to 26 gauge53mm1 1/8″ Width
Standing Seam RollsStanding Seam Rolls16 to 20 gauge53mm3/4″ Height
Right Angles Flange RollsRight Angles Flange Rolls16 to 24 gaugeup to 8mmup to 7/16″ High
Right Angle FlangeCombination
3 in 1 Rolls
with
Special guide
Right Angle Flange22 to 26 gauge13mm1/2″ Height
Standing SeamStanding Seam22 to 26 gauge28mm5/8″ Seam
T-ConnectionT-Connection22 to 26 gauge45mm5/8″ Seam
16g Auto Guide Flanger

16g Auto Guide Flanger

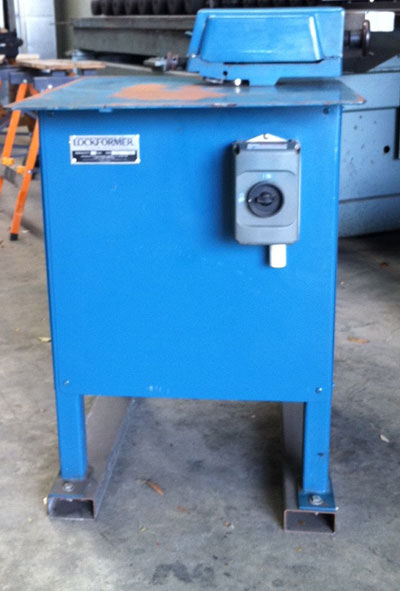

This power flanger has the “auto-guide” feature, which automatically controls the
forming of a right-angle flange. It will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go. A calibrated dial sets the auto-guide for work with radii as small as 3-1/4″.Flange heightavailable of3/8″.

Machine Dimensions: 800mm x 800mm x 1200mm, Weight 140kgs

Electrical: 1hp, 415v 50hz, Speed: approx 6m per minute.

Pittsburgh Model 20 Gauge

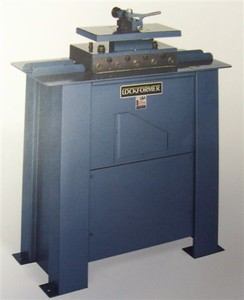

This 5 station rollformer is ideal for airconditioning Duct manufacturers, plumbers and rainwater goods manufacturers. This machine processes 1 mm into what is called the small pittsburgh female pocket of 5/16″ (8mm) on the inboard station. On the top of the machine the Autoguide power flanger is mounted for the automatic feeding of straights or radius metal to turn up th 6mm male pittsburgh.

On the auxilliary station you can fit double seam rolls for joining flat sheet (used in tank bottoms, etc.) or drive cleat rolls for forming the female drive cleat for airconditioning ductwork.

Electrics are 3 phase1hp 415v 50hz, gearbox chain and sprocket drive, dimensions: 1100mm x 600mm x 1200mm, weight 160kg.

This 5 station rollformer is ideal for airconditioning Duct manufacturers, plumbers and rainwater goods manufacturers. This machine processes 1 mm into what is called the small pittsburgh female pocket of 5/16″ (8mm) on the inboard station. On the top of the machine the Autoguide power flanger is mounted for the automatic feeding of straights or radius metal to turn up th 6mm male pittsburgh.

On the auxilliary station you can fit double seam rolls for joining flat sheet (used in tank bottoms, etc.) or drive cleat rolls for forming the female drive cleat for airconditioning ductwork.

Electrics are 3 phase1hp 415v 50hz, gearbox chain and sprocket drive, dimensions: 1100mm x 600mm x 1200mm, weight 160kg.

Pittsburgh Model 20 Gauge

Optional Profiles

 ROLLSCAPACITYAPPROX. MATERIAL USEDSIZE
Pittsburgh roll 1Pittsburgh Lock rolls, 5/16″ Pocket22 to 28 gauge1″5/16″ Pocket
Double seam Rolls20 to 26 gauge1″3/8″ Seam
Drive Cleat Rolls20 to 26 gauge2 1/8″1 1/8″ Width
Right Angle Flange Rolls20 to 26 gaugeup to 3/8″up to 3/8″ High

Auto Guide Flanger

This power flanger has the “auto-guide” feature, which automatically controls the
forming of a right-angle flange. It will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go. A calibrated dial sets the auto-guide for work with radii as small as 3-1/4″.Flange heightavailable of3/8″.

Machine Dimensions: 800mm x 800mm x 1200mm, Weight 140kgs

Electrical: 1hp, 415v 50hz, Speed: approx 6m per minute.
