100mm Weld Pins? Not a Problem.
PowerPinner 7200
Heavy Duty, Portable Hand Welder
The Model 7200 hand welder is a solid state resistance welder designed for use with 16 gauge sheet metal and PowerPoint Resistance Weld Pins.
- Fast weld cycle
- Stronger & more consistent welds
- Less pins on the floor
- Portable wheels/hand truck
- Capable of welding 1/2″ to 4″ pins to 16 gauge metal
The compact size and hand truck feature allows for easy portability around the shop. A light weight pistol grip trigger, ergonomic handle and easy to read controls further simplify operation. The rugged construction and powerful transformer stand up to the demands of constant, heavy use.
This machine is single phase 30 amp Power Pinner suitable for all Gripnail Pins up to and including 100mm in length in all guages for fasteingin insulation/ductliner to metal.
Its lightweight and extra-long gun lead makes it perfect for shop or field use. The complete system includes the power pack with adjustable timer, lightweight gun with heavy duty weld/control leads, and a heavy-duty ground lead with spring loaded copper alloy clamp.
- Lightweight welder with powerful transformer
- Welds 12 pins per minute
Specifications
| Input Voltage | 240 AC 50Hz, 1 Phase |
| Input Current | 30 Amp |
| Single Phase | 50 Cycle |
| KVA Rating | 5.3 KVA |
| Duty Cycle | 50% |
| Fusing | 50 Amp |
| Open Circuit Secondary Volts | 5.82 VAC |
| Short Circuit Secondary Volts | 2480 AMPS |
| Dimensions | 400mm L x 200mm W x 200mm H |
| Cables | Gun: 3 metres Ground: 900mm |
| Weight (crated) | 60kgs |

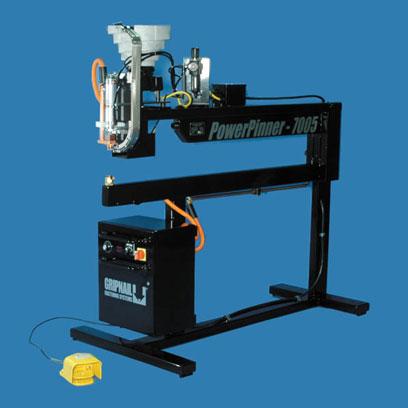

Power Pinner 7005 RF
One step welding speeds production
The new Power Pinner RF has a special program that allows the operator to continuously fasten weld pins while depressing the foot pedal. The RF will keep welding pins until the operator removes his foot from the pedal. This maximizes speed for the fastest possible pinning operation. Flip a switch and the machine returns to a manual mode for larger pieces of duct work.
The PowerPinner –RF features simple, reliable electronic controls and a high output transformer that will fasten 1/2″ to 2″ pins to 16-26 gauge sheet metal. Other features include:
- Dependable Electronic Controls – A programmable logic control unit replaces all timers, relays, reed switches and circuit boards.
- Single Weld Control – Just set the machine for the gauge you want, and everything else is automatic.
- Quick Change Welding Tips – Upper and lower tips can be changed in seconds; lower tip is reversible for twice the life.
- Automatic Pin Feed – One feeder bowl for all pin sizes.
Specifications
| Input Voltage | 240 AC 50Hz, 1 Phase, 30 Amp |
| Air Requirement | 2-3 CFM, 80 PSI |
| Working Depth | 1625mm |
| Anvil Height | 915mm |
| Total Depth | 1728mm |
| Total Width | 813mm |
| Weight | 365kgs. |

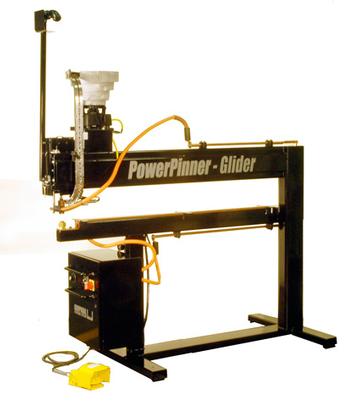

Power Pinner Glider 7105 RF
Convenience of a moveable weld head combined with new step welding speeds production!
The new PowerPinner Glider 7105 Rapid Fire has a special program that allows the operator to continuously fasten weld pins while depressing the foot pedal. This option works when the arm is locked in the vertical posistion and the machine is foot pedal activated. The RF will keep welding pins until the operator removes his foot from the pedal. This maximizes speed for the fastest possible pinning operation. Flip a switch and the machine returns to a manual mode for larger pieces of duct work.
The PowerPinner Glider 7105 Rapid Fire features simple, reliable electronic controls and a high output transformer that will fasten 1/2″ to 2″ pins to 16-26 gauge sheet metal.
Other features include:
Moving Head
Speeds production.
Flange Cutouts
Permit continuous lining of flat or L section flanged duct.
New Improved Reliability
The PowerPinner Glider 7105 Moving Head Welder uses a PLC (Programmable Logic Control) and non-contact proximity sensors in place of pneumatic valves and mechanical actuators.
Easy To Operate
Simple logical controls reduce operation training.
Standard 5 Foot Throat
Fastens large duct sections, reducing material handling.
Front Mounted Component Cabinet
Affords easy access for service needs.
Visual Load Cycle
Quickly confirms electronic functions.
NEMA 12-Rated Electrical Cabinet
Protects electrical component to minimize machine down-time.
Lightweight Foot Pedal
Allows easy movement by operator; cord protector prevents damage.
Compact
Place between work tables for efficient work flow.
Specifications
| Input Voltage | 240 VAC 50Hz, 1 Phase, 30 Amp |
| Air Requirement | 2-3 CFM, 80 PSI |
| Working Depth | 1525mm |
| Anvil Height | 915mm |
| Total Depth | 1805mm |
| Total Width | 815mm |
| Weight | 365kgs |
Power Point Weld Pins
Power point weld pins save time and money because they perform consistently. Each point is precisely formed to provide optimum electrical resistance and each cap and shank asemly is securely swaged so that pins will feed without jamming, even in older welders. In addition, PowerPoints are shipped in plastic buckets to eleiminate shipping damage. The result is continuous production without the expense of having to clear track jams or refasten where pins did not hold.
Faster Welds – forged diamond point design creates more electrical resistance for faster welds.
Super Sharp Point – 22 degree point is the sharpest in the industry and cleanly pierces the toughest duct liner.
Beveled Edge Cap – prevents tearing of duct liner
Better Plating – zinc and chromate plating exceeds SMACNA standards and gives a more professional appearance.
More Consistent Feeding – precise assembly of shands and caps along with a smoother plating reduces feeding problems in tracks of automatic equipment.
Applied with Standard Equipment – easily applied with most standard hand held or hopper fed resistance welders.
Pin sizes available: 12mm, 25mm, 38mm, 50mm
